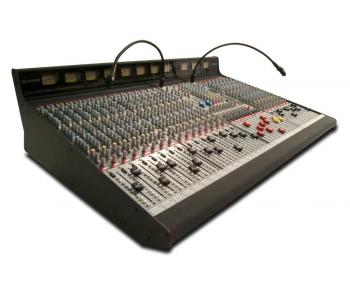

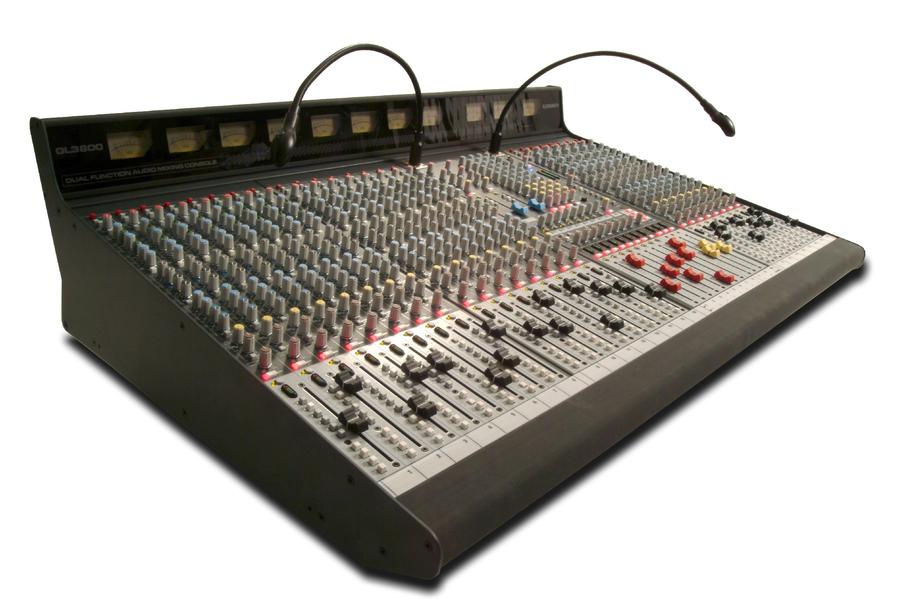

The GL3800 features an enhanced capability for the latest in live sound mixing, and is truly dual-function with all 10 auxes configurable to fader control with insert point and XLR drive. Available in frame sizes up to 48 channels, with the choice of all mono, 4 or 8 stereo channels, the mixer also includes a meterpod with illuminated VUs, and front and rear ident strips.
This great sounding, well featured console has a familiar, walk-up-and-go layout and responsive feel, giving the engineer the very best of analogue console engineering.
• 40 channel frames
• A,B,C,D mono/stereo channel options
• LR and M main mixes
• 8 Audio groups with pan and routing to LR and M
• 10 Auxes including a dedicated stereo send with level and pan controls
• 2 multi-function stereo channels each with mic and stereo line inputs
• 2 extra dual stereos provide 4 summed or independent stereo returns
• Fully featured 12x4 Matrix
• Proper dual functionality for FoH, monitor mixing, or both
• Recording capable with channel direct outputs
• M can be used for centre/sub mix, LR mono sum, or engineers wedge
• Matrix external inputs with level trims and common input capability
• Stereo channel mic inputs can cross patch into matrix for ambience feed
• Responsive 4 band, 2 sweep EQ
• 100Hz channel high pass filters
• Individual phantom power and polarity switching
• Integral meterpod with 11 LED-illuminated, moving coil VU meters
• Wide angle LED channel and master meters
• Dedicated stereo monitor meters
• Per channel pre/post fader aux switching for full flexibility
• Front panel pre/post-EQ switches for user preference
• Mutes on all fader masters
• 100mm premium grade dual rail faders
• Assignable talkback to all outputs, includes a talk switch latch mode
• 1kHz oscillator / pink noise generator with external output
• 2-track monitoring and replay to LR
• 3 headphones/earpiece sockets and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp 74dB range with +34dBu input capability for mic or line
• Ultra low noise mix head amp design
• Uses RPS11 high performance, external linear power supply
• Built-in combiner for redundant backup supply
• Individual circuit card assembly with nutted pots
• Sys-Link V2 console input/output linking option
• 4-pin XLR lamp sockets
- Allen & Heath LEDlamp available
Mono / Stereo Channel Options:
A = all mono channels
B = 4 stereos to right of masters R87 995
C = 4 stereos on far right side R87 995
D = 8 stereos on far right side R98 495
艾伦-希思GL4800M - 840 40帧- GL4800全功能的多功能现场扩声调音台
Choose option above: A,B,C,D mono/stereo channel options 选择上面的选项：甲，乙，丙，丁单声道/立体声通道产品A = All mono channels (Price is as shown) A=所有单声道（价格是如图所示）B = 4 stereo channels to right of masters B=4立体声当家作主权利的渠道，C = 4 stereo channels on far right hand side C = 4立体声渠道，远右边D = 8 stereo channel on far right hand side D = 8声道立体声就远远右边
