The GL3800-848 is a large format, dual function, LR, M, 8 group, 10 aux, 12x4 matrix console, with A,B,C,D options for more stereo channels:
GL3800-848A - all mono channels
GL3800-848B - 4 stereo channels to right of masters
GL3800-848C - 4 stereo channels on outside right
GL3800-848D - 8 stereo channels on outside right
Whether mixing FOH, monitors or both, recording live, installed in a busy venue, out on the road touring, or earning its keep in rental stock, the GL3800 provides the perfect solution. This great sounding, well featured console has a familiar, walk-up-and-go layout and responsive feel giving the engineer the very best of analogue console engineering.
Combining the proven features of the best-selling GL3300 and the latest features of the GL2800, the GL3800 is destined to become a leading 8-buss console for live or recording work.The GL3800 has been updated with more facilities for modern day mixing - it’s truly dual-function with all 10 auxes configurable to fader control with insert point and XLR drive. The GL3800 has internal circuitry to autoswitch a second PSU where a fail-safe operation is desirable, and now with ultra-smooth dual rail K faders, this console will be a favourite of the connoisseur operator.
The GL3800 is the latest edition of the highly-successful GL3000 family, which has proved to be the ultimate mixer package for fixed installations over the last 10 years. It has all the professional features required for day-in, day-out use in theatres, houses of worship and concert halls: high specification, high quality feel and exceptional sound performance, while its rugged construction and individual circuit board design ensure that the GL3800 is built to last a very long time.

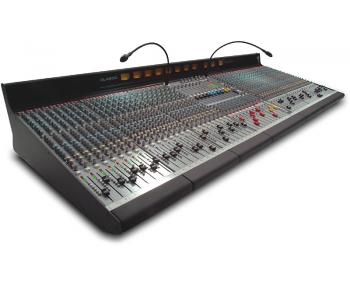

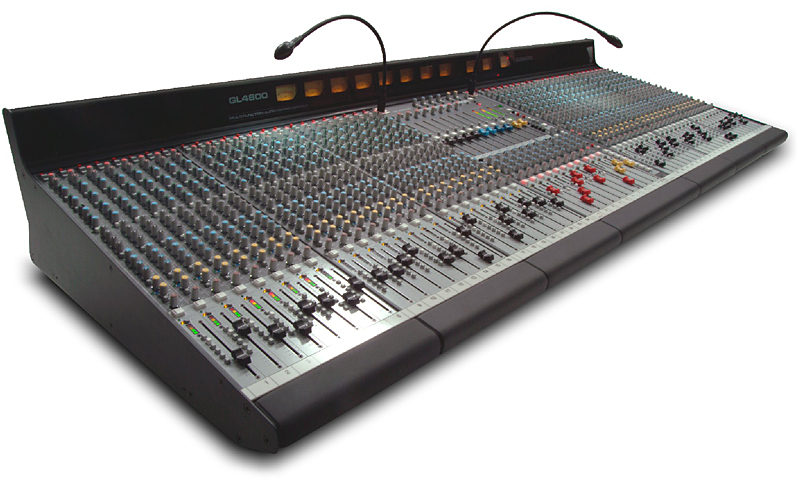

Note: Photos show model GL3800-824 (24 channel version)
24，32，40和48通道帧
甲，乙，丙，丁单声道/立体声通道的选择
轻铁巴士和M组合
8个组别的泛音频和路由到轻铁和M
10个辅助发送包括一个专用立体声发送
2个完整的麦克风和立体声线路输入每个立体声通道
2个额外的双立体声或独立的总结提供4个立体声返回
全功能12x4矩阵
适当的双重功能为文物之友/监视器混合
记录与渠道能够直接输出
M可以用于轻铁单声道的总和，工程师楔，或中心/分组合
矩阵层次修剪和外部输入共同的输入能力
立体声通道麦克风输入可以越境进入矩阵氛围饲料补丁
响应4段，2扫情商
通道100Hz的高通滤波器
个人幻像电源开关和极性
积分meterpod 11的LED照明，动圈VU表
广角LED通道和主米
专用立体监测米
每通道前/推子后辅助开关充分的灵活性
嵌入式前/后均衡器辅助开关，每通道
内部的辅助，直接输出跳线插头和其他选项
静音大师所有推子
100毫米特级双轨推杆
可分配到所有输出对讲
1kHz的振荡器/外部输出粉红噪声发生器
2，以跟踪监测和重放轻铁
3耳机/耳机输出插座和地方监察
电子与+26 dBu的平衡XLR输出驱动能力
前置74分贝+34 dBu的输入范围与能力的麦克风或线路
超低噪声放大器设计混合头
利用外部线性电源
内置冗余备用电源合成器
金属插口，镀金XLRs，密封罐和开关
个人电路可固定盆卡装配
固体铜母线接地
Sys - Link的V2的主机连接选项
4针灯座
