The GL4800-824 is a large format, multi-function, LR, M, 8 group, 10 aux, 11x4 matrix console, with A,B,C,D options for more stereo channels:GL4800-824A - all mono channelsGL4800-824B - 4 stereo channels to right of mastersGL4800-824C - 4 stereo channels on outside rightGL4800-824D - 8 stereo channels on outside rightBased on the highly successful GL4000, the GL4800 is a real thoroughbred multi-function mixer, with a mass of features and detail that makes this mixer a joy for engineers to use. This is a truly multi-functional console, offering features such as group output trims for recording, extended auxiliaries using matrix sends, multiple main outputs and trimmable direct outputs from channels.
The GL4800 is supremely adaptable to every application and is perfect for engineers in both live sound and recording. Rental companies will appreciate a mixer which will work hard for its living, delivering exceptional audio performance every day of the week.Features
• A,B,C,D mono/stereo channel options
• Multi-functionality for FOH/Monitor mixing and live recording
• LR and M main mix
• 8 Audio groups with pan and routing to LR and M
• 11x4 Matrix
• 10 Auxiliary sends with faders, inserts and XLR
• Aux 10 can provide channel direct output pre/post and level trim
• Group out pre/post switching and level trim for recording
• Per channel pre/post fader aux switching for unlimited flexibility
• Second LR2 output with pre/post fader selection and level trim
• Output reverse mode to swap aux inserts and XLR with matrix and LR2
• 2-track replay to LR and monitor
• Stereo channel line inputs can be assigned independently to LR
• 4 band, 4 sweep EQ with switched Q on midrange
• Swept 20-400Hz high pass filters
• Matrix to aux link for quick monitors and grouped effects
• 128 snapshot memory mute automation with preview and safes functions
• 8 Mute groups or scenes
• Solo-in-Place with toggle last and safes
• Single press clear or set all mutes function
• Mutes on all fader masters
• Meters on all buses to prevent mix overload
• Simultaneous metering of the groups, LRM and auxes
• Integral LED-illuminated moving coil VU meterpod
• Simultaneous LED bar and VU monitor metering
• Mono/stereo PFL with trim
• PFL override AFL for logical input/output monitoring
• Engineers wedge fader control in monitor mode
• Separate headphones and local outputs
• Talkback to LR, M, groups, matrix, and to each aux
• Electronically balanced XLR outputs with +27dBu drive capability
• Preamp +34dBu maximum input capability for mic or line
• Ultra low noise mix head amp design
• Balanced inserts with separate send and return sockets
• 100mm, premium grade dual rail faders
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Built-in combiner for redundant backup power supply
• Sys-Link V2 console input linking option

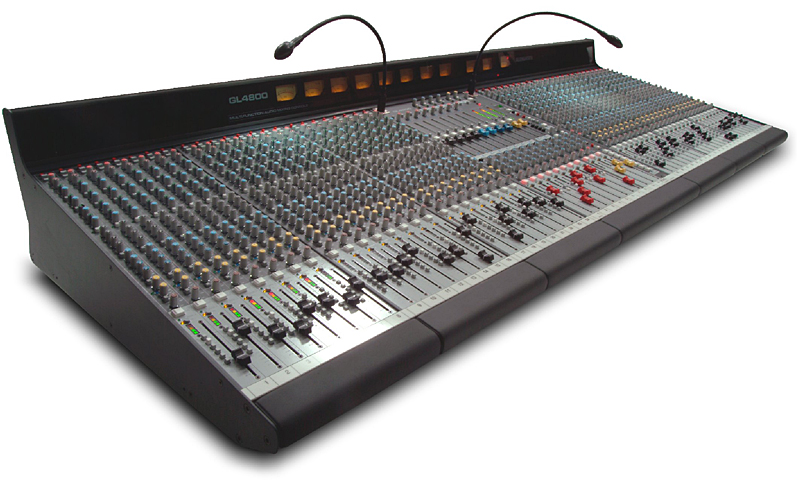

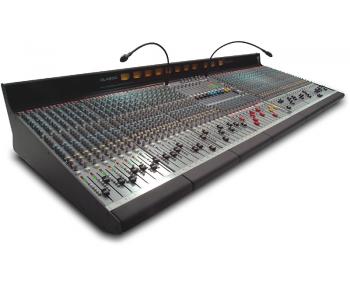

The GL4800 ships with mains leads, dust cover, user guide, A&H stickersNote: Photos show model GL4800-848 (48 channel version)艾伦和希思GL4800 - 824D主要特点包括:
24,32,40,48信道帧
甲,乙,丙,丁单声道/立体声通道的选择
多功能的文物之友/监视器混合和现场录音
LR和m主混音
8音频群体锅和路由到轻铁和M
11x4矩阵
10个辅助发送与推子,插入和XLR
辅助10可提供通道直接/后输出预修剪和水平
组进行前/后切换和层次修剪记录
每个通道前/推子后辅助开关无限的灵活性
与前/推子后选择和产出水平的二LR2拥有修剪
输出反向交换辅助插入和XLR与基体和LR2拥有
2 - LR和跟踪重放,以监测
LR立体声线路输入通道可以独立地分配土地注册处
四带,四扫情商与开启中端Q
扫频20 - 400Hz的高通滤波器
矩阵显示器和辅助快速分组效应链接
128内存快照自动化与静音功能预览和保险柜
8静音团体或场景
单独就地切换与去年和保险柜
单按清除或设置所有静音功能
静音大师所有推子
所有巴士米,防止超载组合
同时计量的群体,LRM模块和辅助发送
积分的LED照明动圈式维旺迪环球meterpod
同时LED光柱和VU计量监督
单声道/立体声形成线与修剪
逻辑输入脉冲形成线覆盖劳联/输出监控
工程师在监测楔形推杆控制模式
独立耳机和地方产出
对讲到轻铁,男,团体,矩阵,以及各辅助
电子与+27 dBu的平衡XLR输出驱动能力
+34 dBu的最大输入前置放大器的话筒或线路的能力
超低噪声放大器设计混合头
有独立的发送和返回插入插座平衡
100毫米,特级双轨推杆
金属插口,镀金XLRs,密封罐和开关
个别电路可固定盆卡装配
内置合成器,用于冗余备份电源
Sys - Link的V2的控制台输入连接选项
