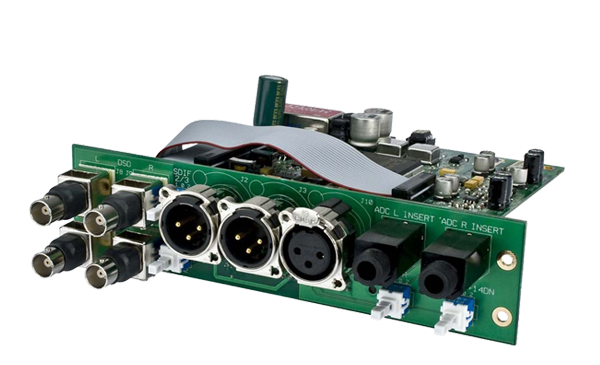

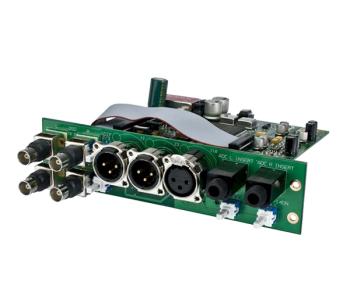

顶级的模拟转换,具有高达192kHz和DSD输出采样率的数字转换卡。终极模拟电路技术与卓越的数字转换和8816配合使用。
公司现已成为传奇的声音尼夫8816混合器,基于生产者。综合输入,混合和监控功能升级的DAW专业的混合设备。十六输入通道包括水平,切割和提示控制。一个15db增益范围可容纳两-10dBv工作和+4dBm的输入电平。如果十六的投入不足以让你的组合,8816多个单位可以级联在一起,通过固定水平双轨Buss。***终的模拟的混合总线利用经典Neve变压器混合布局。混合输出同时平衡+4 -10dBv工作出现不平衡。混合插入预褪色完全控制,可以正常插入模式和掌握风格和立体声宽度控制的不同模式之间切换。后插入组合功能可用于在一个单独的干或混合有特殊效果的混合。
Features:•Total Recall stored via USB
特点:•共召回通过USB存储
•16 inputchannels plus aux additional inputs
•16输入通道加辅助额外输入
•Cue, Level,Pan, Solo and Mute controls
•线索,水平,声像,独奏和静音控制
•ClassicNeve analogue transformer mix buss
•经典尼夫模拟变压器的混合总线
•Mix Insertpoints
•混合插入点
•Varioussolo and solo in place functions
在功能•各种独唱和独奏
•Sum anddifference insert with exclusive "Stereo Width Control"
•和独特的“立体宽度控制差插入”
•Dance mixstyle insert Mix function
•舞曲风格插入混合功能
•SeparateMonitor and Cue levels
•独立的监控和提示的水平
•Main andAlt speaker outs
•主要和ALT扬声器出局
•In builttalkback mic and headphone Output
•内置对讲话筒和耳机输出
•Optionaldigital output card
•可选的数字输出卡
•Units canbe cascaded for multiple output
•单位可以级联多个输出
•2 rack Uhigh with special shielded power supply
•2架高特殊屏蔽电源
An optionaldigital output converts the analogue mix to any standard PCM sample rate up to192kHz or DSD, a unique feature extending Neve’s commitment to the ultimateanalogue and digital sound. Output PPM meters are complemented by overload LEDsto indicate clipping at the ADC or analogue output. The monitor section selectsbetween Mix Out, 2 Track Return, Channels 1 & 2 (DAW mix replay) and"i- mon" front panel input min-jack, handy for quick mix comparisons.The monitor level is independent of the mix level and the monitor outputs canbe switched between Main and Alt speakers. A separate Cue Output can be fedfrom three sources and the inbuilt Talkback mic. Headphones can be used tolisten to either Cue or Monitor source. The final touch? Total recall! A USBconnector allows snapshots of the 8816 setting to be saved to a PC and recalledready for remix! •Creating a professional mix environment for
一个可选的数字输出转换成模拟混合到任何标准的PCM采样率高达192kHz或DSD,延伸***终的模拟和数字声音独特的特征。输出PPM米辅以过载LED显示卡在ADC或模拟输出。监测断面选择之间的混合,2轨道返回,通道1和2(DAW混音重放)和“我-我”面板输入***小千斤顶,方便快速组合的比较。监控水平是独立的混合水平和显示器输出可以主要和ALT扬声器之间切换。一个单独的信号输出可由三源和内置的对讲话筒。耳机可以听任何提示或监视源。***后的联系吗?全面回忆!一个USB连接器允许快照8816设置被保存到电脑召回准备混音!•创建一个专业的混合环境
•DAW basedproducers
•DAW生产商
•LegendaryNeve transformer sound
•传奇尼夫变压器声音
•Electronicsfrom the famous 88R analogueconsole
•电子从著名的88r analogueconsole
•Transformerbalanced, 16 mono / 8 stereo inputs,pan fade
•平衡变压器,16单/ 8路立体声输入,声像调节
•A/D converters,total recall, cue/solo feature,PPM metering
•A/D转换器,全面回忆,提示/个人特征,PPM计量
•Highquality, low noise 16 into 2 mixing withbuss inserts and insert balanceplayback facilities
•高质量,低噪音16到2混合withbuss插入和插入平衡重放设备
